Are You Looking For High-Performance Carbon Fiber Insulation Boards?
Reduce Heat Loss Upto 33% | Improve Cycle Stability Upto 27% | Reduce Furnace Maintenance Cost by 35%.
6 Biggest Mistakes Vacuum Furnaces, Manufacturers, and Users Make When Choosing a Carbon Fiber / Graphite Insulation Board Supplier.
When comparing carbon fiber / graphite insulation boards, users often think:
Higher density means better quality
So the decision gets reduced to two numbers:
Density (g/cc)
This feels logicalise”but”but in reality, it is misleading.
Why density alone does not tell the full story, Density only tells you how heavy the board is, not:
How the fibers are arranged
How the board behaves during thermal cycling
How much it will shrink or warp at high temperature
How much it will outgas inside a vacuum furnace
Two insulation boards can have the same density and still perform very differently once installed in the hot zone.
What actually happens in real furnaces
Boards chosen only on basis of low price often lead to:
Slower heating and higher power consumption
Cracking or edge breakage after a few cycles
Warping that creates gaps and heat loss
Contamination due to hidden binders or poor carbonization
These problems don't appear on Day One—but show up after weeks or months of operation.
Why low-price boards are risky, To reduce price, some suppliers:
Use lower-grade fibers
Reduce impregnation or heat-treatment time
Skip proper stress relief after machining
This lowers cost but also lowers cycle life and stability of the insulation board.
Chinese graphite or carbon fiber insulation boards are attractive because:
The initial price is lower
Products are easy to source through traders.
The challenge is not the product label—it’s the lack of consistency, reliability, and service support.
In many cases: Customers often experience:
One batch performing well, the next failing early
Cracking or warping after a few thermal cycles
Variation in machining quality and fit
Delays in replacements or technical clarification
No on-site or immediate support when problems arise
These issues don’t just affect insulation—they affect furnace uptime, energy efficiency, and production schedules..
Buying from a “materials seller” or just trader, instead of a hot-zone application expert or manufacturer.
Insulation boards behave very differently in:
Horizontal vs vertical furnaces
Gas quench vs vacuum only
Large hot zones vs compact chambers
A supplier who does not understand:
Furnace geometry
Heat flow
Shield interaction
Mechanical loading
...will sell you the wrong board, even if the material itself is decent.
Hidden costs:
Higher electricity
More frequent replacements
Furnace downtime
Contaminated loads
Pump and element damage
The insulation board is one of the highest ROI components in a vacuum furnace—yet treated like a commodity.
If a supplier or trader:
Only talks price
Only quotes density
Avoids process questions
Can’t explain furnace behavior
They are selling material, not solving furnace problems.
Satisfied Clients
673+Since
2010Output
$ 7.5 BnManufacturing Plants
3WorkForce
110+Only 1 In India, Amongst 8 In The World.
Most Furnace Problems Start With The Wrong Insulation Board And The Damage Does not Show On Day One
Many furnaces underperform not because of heating elements or controls—but because the insulation board wasn't designed for repeated thermal cycling, low outgassing, or real furnace conditions.The result shows up later as higher power consumption, cracking, contamination, and downtime.
Our Carbon Fiber / Graphite Insulation Boards Are Designed For Extremely High Temperature Furnace Conditions
Not just high temperature ratings—real performance inside vacuum furnaces.
Engineered Fiber Structure
Controlled Carbonization and Graphitization
Designed For Repeated Heating Cycles
Used In Demanding Furnace Environments
7 Reasons Why Clients Choose Our Graphite Felt
We supply authentic, high-quality insulation boards—not mass-produced imports.
Full replacement commitment with zero hassle.
Support continues even after installation.
Ready stock to avoid furnace downtime.
Right insulation based on furnace requirements.
Custom sizes, thicknesses, and profiles.
India’s only graphite insulation board manufacturer.
When clients work with us, they get accountability and long-term support — not just a supplier.
Share Your Application Details for a Customized Product Recommendation
Standard Size Insulation Boards. Ready To Ship in 48 Hrs
Within the carbon fiber board family, there are versions with different surface treatments-each suited to slightly different needs.

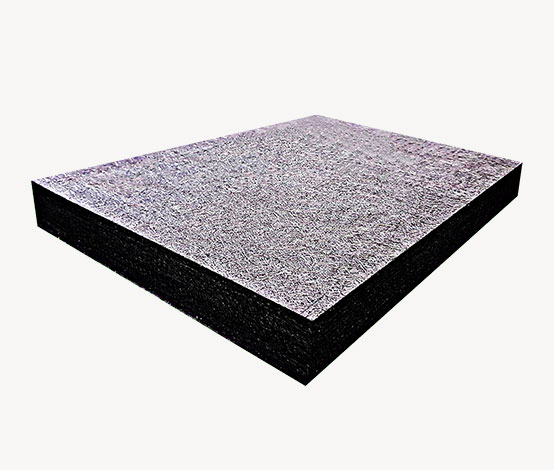

FuRIB-O
No Coating (Basic Board)
A straightforward insulation board without any surface layer-” useful where surface treatment isn't critical.

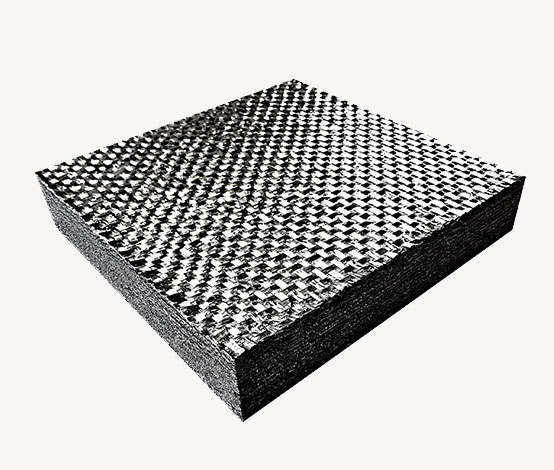

FuRIB-C
CFC Fabric Lamination
Carbon fiber composite fabric layer adds extra strength and surface protection, improving wear resistance inside the furnace.

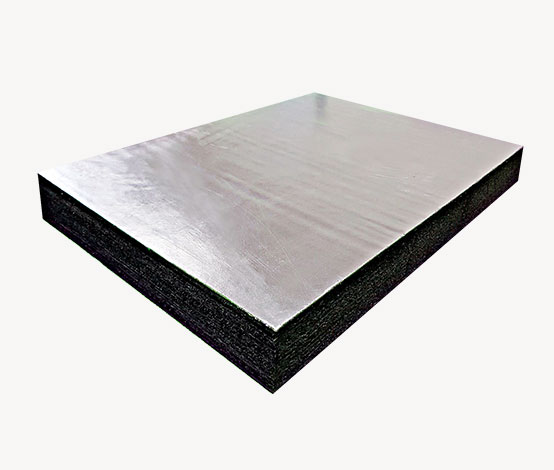

FuRIB-G
Graphite Foil Coating
Thin graphite foil on one side reduces dust and improves radiant heat reflection, enhancing furnace uniformity.

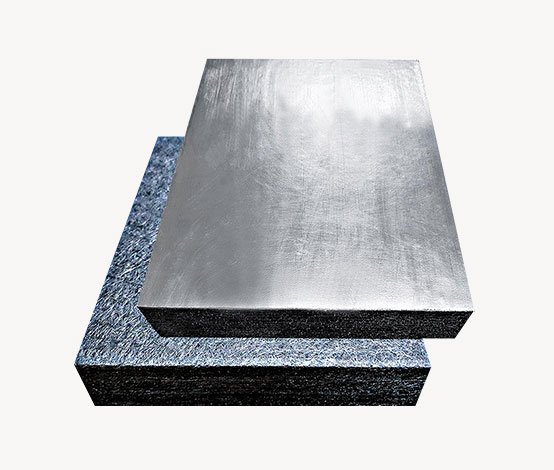

FuRIB-H
Hybrid (Foil + CFC Fabric)
One side coated with graphite foil and the other laminated with CFC fabric each side serves a different purpose inside the furnace.

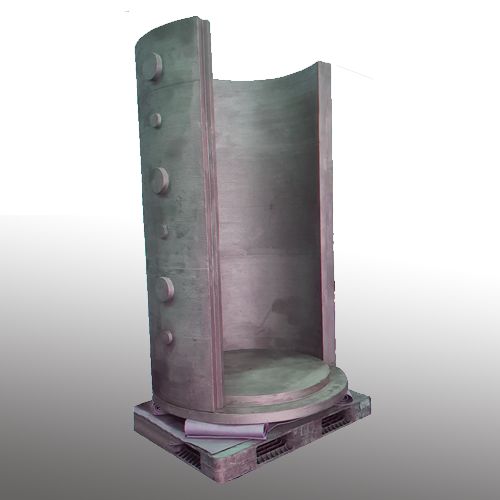

Customized Board

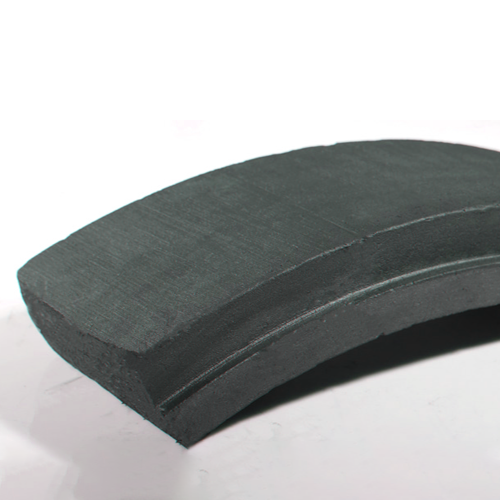

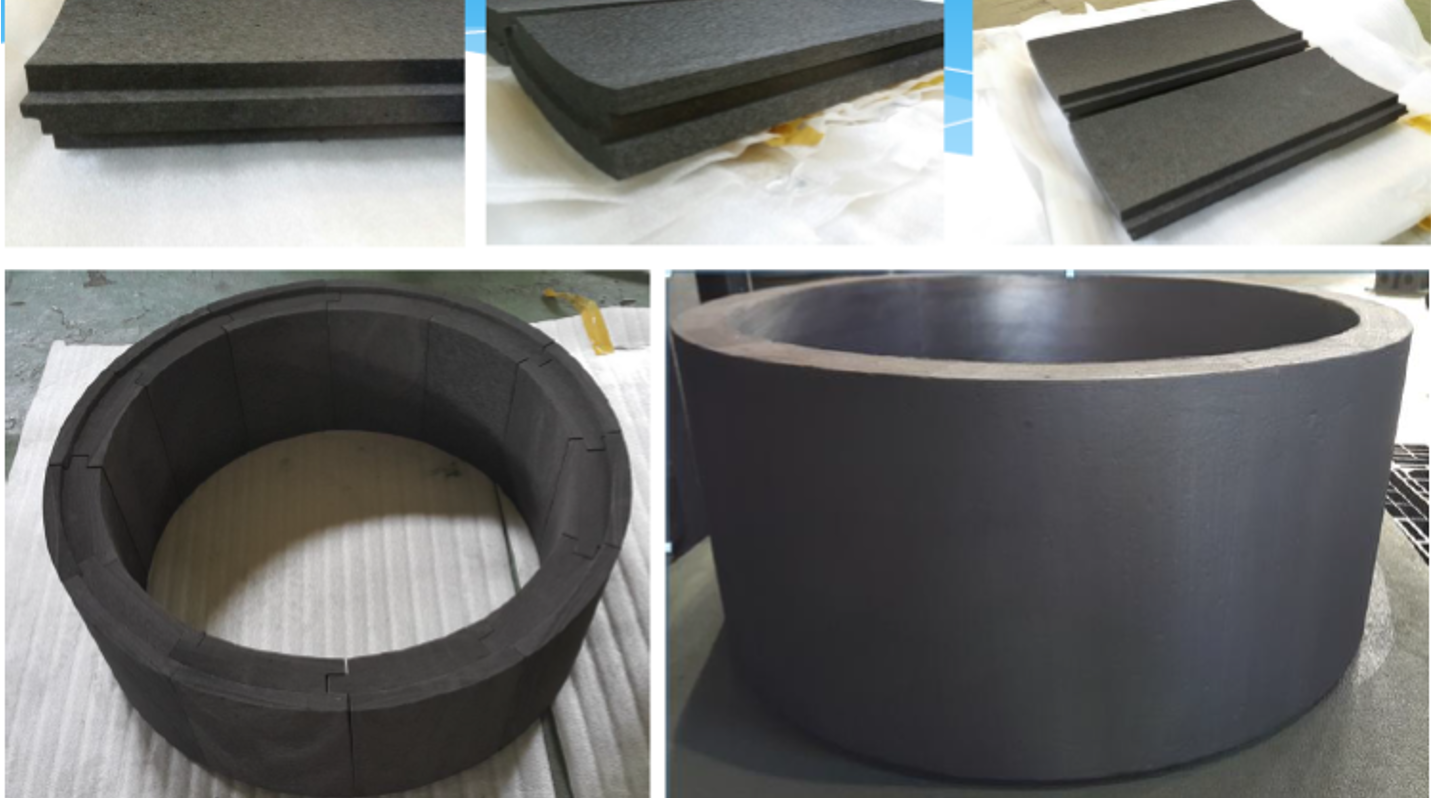

Customized Insulation Boards (Shape & Size-Specific)
Not all furnaces are square and rectangular. That's why many buyers choose boards that are cut and shaped to fit their specific hot-zone geometry-especially for:
Circular or cylindrical furnaces Non-standard furnaces with door seals or inserts Furnaces with internal fixtures and special carriers Boards that are cut precisely to fit have fewer gaps, less heat loss, and stay stable longer during thermal cycling, compared to forcing generic boards into complex spaces.
Max Size : 1500 x 1000 x 300mm , Cylinder 1500 x H2500 mm (variable thicknesses)
Technical Data Sheet
| Property | Unit | Value |
|---|---|---|
| Bulk Density | g/cm³ | 0.14 – 0.20 |
| Flexural Strength | MPa | 1.0 – 2.0 |
| Compressive Strength | MPa | 6.0 – 9.8 |
| Thermal Conductivity | W/m·K | 0.1 – 0.2 |
| Electrical Resistivity | µΩ·m | 3.0 – 4.0 |
| Ash (Standard) | PPM | < 100 |
| Ash (High Purity) | PPM | < 15 |
Customized Board
Our Prestigious Clientele
.png)
Applications & Industries
Where Insulation Behavior Matters. Because different processes stress insulation in very different ways.

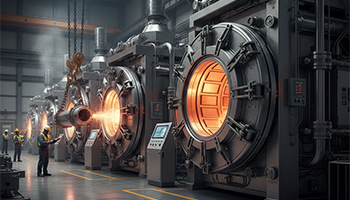

Vacuum Heat Treatment Furnaces
These furnaces run frequent heating and cooling cycles. Insulation must stay dimensionally stable over time; otherwise gaps form, heat loss increases, and power consumption rises.

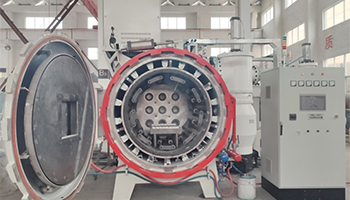

Vacuum Sintering Furnaces
Sintering requires long soak times and uniform temperatures. Insulation behavior matters because shrinkage or warping can disturb thermal uniformity and directly affect part density and quality.

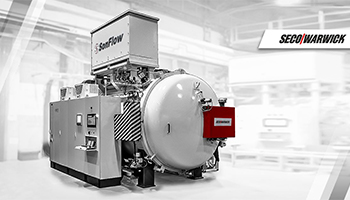

Vacuum Brazing Furnaces
Brazing is extremely sensitive to cleanliness. Low outgassing Carbon Fiber Insulation Boards or treated Graphite Insulation Boards help prevent contamination that can weaken joints or cause rejects.

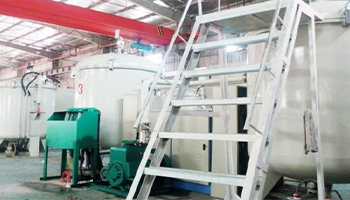

High-Temperature Graphitization Furnaces
At very high temperatures, insulation is under severe thermal stress. Stable Carbon Fiber Insulation Boards and Carbon Fiber Rigid Felt help maintain furnace geometry and protect heating elements over long operating periods.
.jpg)

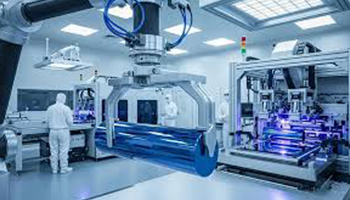

Solar Industry (Ingot & Wafer Processing)
Solar furnaces operate at high temperatures with long cycles. Insulation must combine low heat loss and long-term stability, which is why Carbon Fiber Rigid Felt and Carbon Fiber Insulation Boards are commonly used.

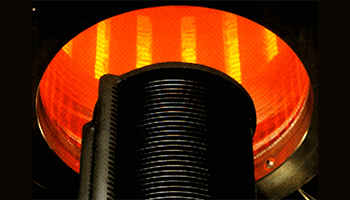

Semiconductor Processing Furnaces
Semiconductor applications demand extremely clean furnace environments. Insulation behavior matters because outgassing, dust, or inconsistent insulation can affect wafer quality and yield.
 Pullers.jpg)

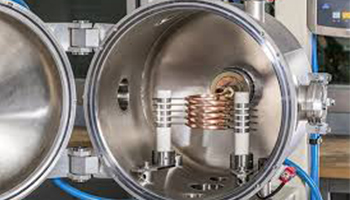

Czochralski (CZ) Pullers
In CZ pullers, insulation directly influences thermal gradients and crystal growth stability. Carefully selected Carbon Fiber Insulation Boards and Rigid Felt help maintain consistent conditions during long crystal growth cycles.

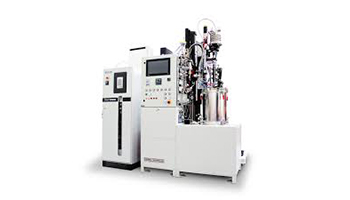

Silicon & Crystal Growing Furnaces
These furnaces run continuously for extended periods. Insulation must resist creep, shrinkage, and thermal fatigue to avoid changes in temperature profile over time.

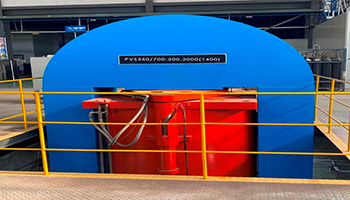

Hot Pressing & HIP Furnaces
These processes combine high temperature with mechanical load. Insulation boards need structural strength and dimensional stability so that insulation performance does not degrade under pressure.
Advanced Materials Processing
Manufacturing of advanced Material require tight process control. Stable Carbon Fiber and Graphite Insulation Boards help maintain repeatable thermal conditions, reducing part-to-part variation.

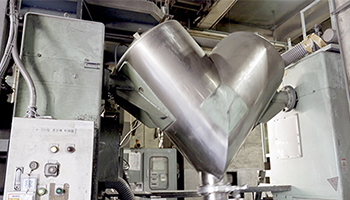

Powder Metallurgy & Advanced Sintering
Uniform heating is critical for powder consolidation. Insulation behavior matters because uneven heat loss can lead to density variation and inconsistent mechanical properties.
Discuss Your High-Temperature Insulation Needs with Our Engineers
VAIBHAV AGGARWAL
As the Founder and Managing Director of Expo Graphite & Composite
Entrepreneurial Founder of Expo Graphites and Composites | Expert in Graphite and C/C Composite | Material Science
Click The LinkedIn Link:
Frequently Asked Questions
Max operating temperature, hot zone dimensions, furnace type, process type, and whether you need felt, board, or replacement equivalent. Share these and we respond faster with correct selection.
Yes. If you share basic dimensions, temperature, and application, we can give a preliminary quote range and delivery estimate. Final quote depends on confirmed specifications.
Yes. Coatings, laminations, and surface treatments can be discussed based on furnace design and application needs.
Use the Compare Felt vs Board CTA and share temperature, mechanical requirements, and hot zone design. The correct answer depends on efficiency goals and durability constraints.
